Peso (KG): 845 kg
Diametro max: 400 mm / 450 mm
Ancho: 1452 mm
Largo: 1500 mm
Alto: 654 mm
Toma min: 120 mm

Peso (KG): 845 kg
Diametro max: 400 mm / 450 mm
Ancho: 1452 mm
Largo: 1500 mm
Alto: 654 mm
Toma min: 120 mm

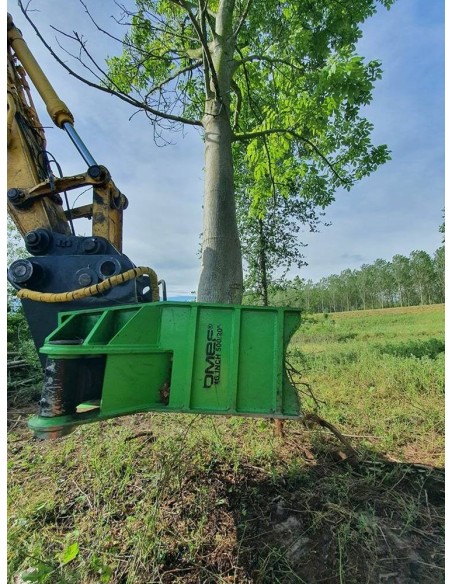

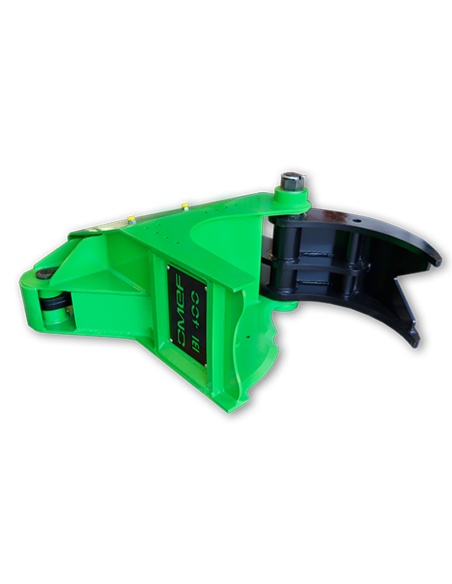

The BIG INCH system of Omef shears is the perfect symbiosis between simplicity, efficiency and versatility.
It is a worldwide success capable of grasping, cutting and preserving the plant. The integrated blade that is part
of the BIG INCH shear design achieves the highest levels of toughness.
The BI400 shear incorporates a cylinder with 70 t of force and an upper cut of 400 mm in diameter
Available for machines from 14 to 24 t
